Front-end 8 x 1Gb ports support independent access, fail-over and load balancing(802.3ad port trunking, LACP)
Supports iSCSI jumbo frame
Supports Microsoft Multipath I/O (MPIO)
Supports RAID levels 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60 and JBOD
Local N-way mirror: Extension to RAID 1 level, N copies of the disk
Global and dedicated hot spare disks
Write-through or write-back cache policy for different application usage
Supports greater than 2TB per volume set (64-bit LBA support)
Supports manual or scheduling volume snapshot (up to 32 snapshots)
Snapshot rollback mechanism
On-line volume migration with no system down-time
Online volume expansion
Instant RAID volume availability and background initialization
Supports S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives
Overview
Unparalleled Performance

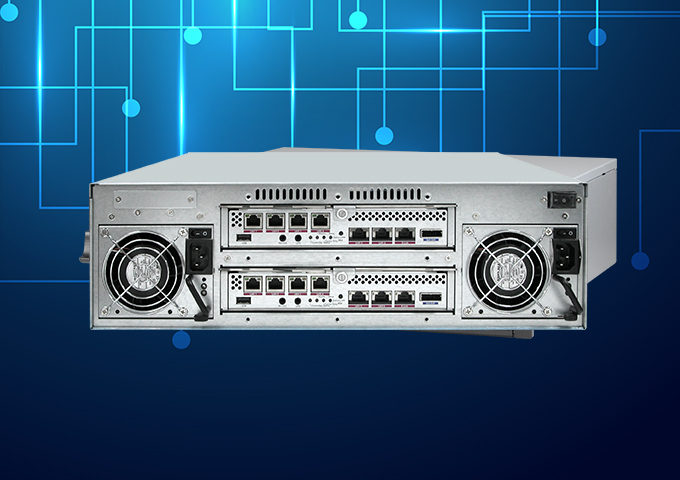

Supports Dual-active controllers
Front-end 8 x 1Gb iSCSI
Supports 802.3ad port trunking, Link Aggregation Control Protocol (LACP)
High data bandwidth of system architecture by powerful 64-bit RAID processor
Unsurpassed Data Availability
RAID 6 capability provides the highest level of data protection
Supports snapshot-on-the-box w/o relying on host software
Supports Microsoft Windows Volume Shadow Copy Services (VSS)
Unsurpassed Data Availability
Management GUI via serial console, SSH telnet, Web and secure web(HTTPS)
Event notification via Email and SNMP trap
Menu-driven front panel display
Technical Specifications
| Model | FlexNAS TC 16BAYS ISCSI |
|---|---|
| RAID Controller | iSCSI-SAS |
| Controller | Single / Dual (Redundant) |
| Host Interface | Four 1Gb/s Ethernet (per controller) |
| Disk Interface | SAS 3Gb or SATA II * |
| SAS expander | 4x mini SAS (3Gb/s) |
| Processor Type | Intel IOP342 64-bit (Chevelon dual core) |
| Cache Memory | 2GB~4GB DDR-II ECC SDRAM (per controller) |
| Battery Backup | Optional Hot Pluggable BBM |
| Management Port support | Yes |
| Monitor Port support | Yes |
| UPS connection | Yes |
| RAID level | 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60 and JBOD |
| Logical volume | Up to 1024 |
| iSCSI Jumbo frame support | Yes |
| Supports Microsoft Multipath I/O (MPIO) | Yes |
| 802.3ad Port Trunking, LACP Support | Yes |
| Host connection | Up to 32 |
| Host clustering | Up to 16 for one logical volume |
| Manual/scheduling volume snapshot | Up to 32 |
| Hot spare disks | Global and dedicated |
| Host access control | Read-Write & Read-Only |
| Online Volume migration | Yes |
| Online Volume sets expansion | Yes |
| Configurable stripe size | Yes |
| Auto volume rebuild | Yes |
| N-way mirror (N copies of the disk) | Yes |
| Microsoft Windows Volume
Shadow Copy Services (VSS) |
Yes |
| Supports CHAP authentication | Yes |
| S.M.A.R.T. support | Yes |
| Snapshot rollback mechanism support | Yes |
| Platform | Rackmount |
| Form Factor | 3U |

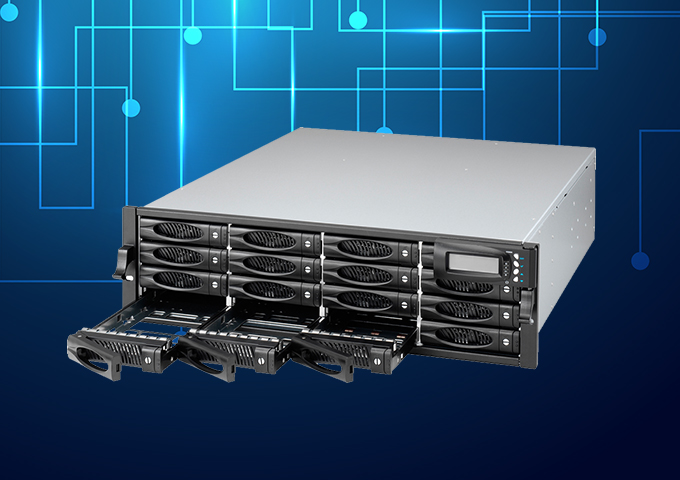

| # of Hot Swap Trays | 16 |
| # of Expansion Disks | Up to 64 disks |
| Tray Lock | Yes |
| Disk Status Indicator | Access / Fail LED |
| Backplane | SAS2 / SATA3 Single BP |
| # of PS/Fan Modules | 460W x 2 w/PFC (80 plus) |
| # of Fans | 2 |
| Power requirements | AC 90V ~ 264V Full Range, 10A ~ 5A, 47Hz ~ 63Hz |
| Environmental | |
| Relative Humidity | 10% ~ 85% Non-condensing |
| Operating Temp | 10°C ~ 40°C (50°F ~ 104°F) |
| Physical Dimensions | 555(L) x 482(W) x 131(H) mm |
| Weight (Without Disk) | 19 / 20.5 Kg |
Specification is subjected to change without notice.
